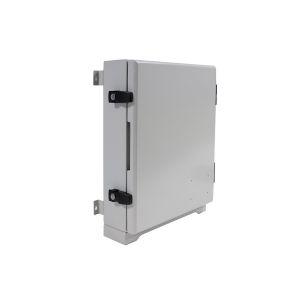

30dBm Digital Selective Band N77 MIMO Band-adjustable Repeater
Feature
Technical Specifications:
| P/N:DS-30-N77 | N77 (2T2R) | ||
| Frequency Range | Uplink | 3700 - 3980 MHz (adjustable) | 3700 - 3980 MHz (adjustable) |
| Downlink | 3700 - 3980 MHz (adjustable) | 3700 - 3980 MHz (adjustable) | |
| Number of Sub-bands | 1 | 1 | |
| Bandwidth | ≦ 100 MHz (adjustable) | ≦ 100 MHz (adjustable) | |
| Max. Gain | Uplink | 70±2 dB | 70±2 dB |
| Downlink | 80±2 dB | 80±2 dB | |
| Manual Gain Control | 31 dB in step of 1 dB | ||
| Automatic Gain Control | ≧ 20 dB | ||
| Gain Flatness (per sub-band) | ≦ ±3 dB (peak-to-peak) | ≦ ±3 dB (peak-to-peak) | |
| Max. Input Power Without Damage | 0 dBm | ||
| Output Power | Uplink | 20±2 dBm | 20± dBm |
| Downlink | 30±2 dBm | 30±2 dBm | |
| Out of Band Gain | 5,0≤f_offset_CW < 10,0 MHz | ≤45 dB | ≤45 dB |
| 10,0 MHz≤f_offset_CW | ≤35 dB | ≤35 dB | |
| Spurious Emission | 9kHz~1GHz | ≦ -36dBm | ≦ -36dBm |
| 1GHz~12.75GHz | ≦ -30dBm | ≦ -30dBm | |
| ACRR | ±100MHz | ≦-36dBc/30KHz | ≦-36dBc/30KHz |
| ±200MHz | ≦-40dBc/30KHz | ≦-40dBc/30KHz | |
| EVM | ≦ 3.5% | ≦ 3.5% | |
| Frequency Stability | ≦ ±0.01 ppm | ≦ ±0.01 ppm | |
| Noise Figure | ≦ 8dB | ||
| VSWR | ≦ 2 | ||
| System Delay | ≦ 3.5 ㎲ | ||
| RF Connector | N-Female | ||
| Impedance | 50 Ω | ||
| Power Supply | AC 110/ 220 V, 50/ 60 Hz | ||
| Power Consumption | 200W | ||
| Dimensions | 450*360*205 mm | ||
| Weight | ≦ 10kg | ||
| IP Rating | IP65 | ||
| Operating Temperature | -25 to 55 ℃ | ||
| Control & Monitoring | Local | Via RJ45 | |
| Remote | Via Wireless Modem (optional) | ||
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are the factory, with good trading service.
